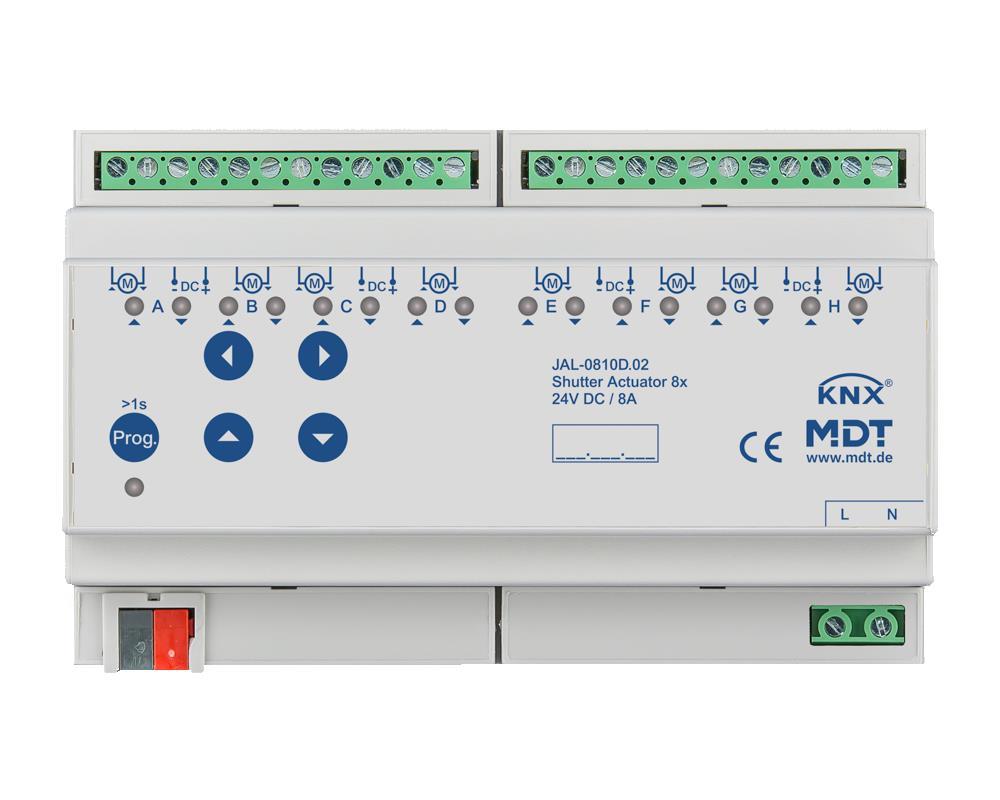

JAL-0810D.02 - Shutter Actuator 8-fold, 8SU MDRC, 8 A, 24 V DC

Shutter Actuator 8-fold, 8SU MDRC, 8 A, 24 V DC. For 24 V DC shutter motors up to 180 W. With sun position calculation. Lockable manual operation and LED indicator for each channel. Operation mode blind/shutter. Practical ventilation function (window open/tilt). Automatic sun shading/slat adjustment with sun position calculation. Travel-, pause-at-change-of-direction and step time adjustable. Separate travel time for up and down adjustable. Tip operation for accurate positioning. Extended 1 Bit automatic positions and logical functions. 1 Byte absolute positioning for shutter and blinds. Alarm, central- and block functions. Behavior after alarms and locking separately configurably. Priority/forced operation with automatic release time. To feed 24 V DC motors with 2 connections. Integrated commutator circuit. Adjustable behavior in case of bus voltage failure/return. Quick application download (long frame support for ETS5). 3 year warranty.
