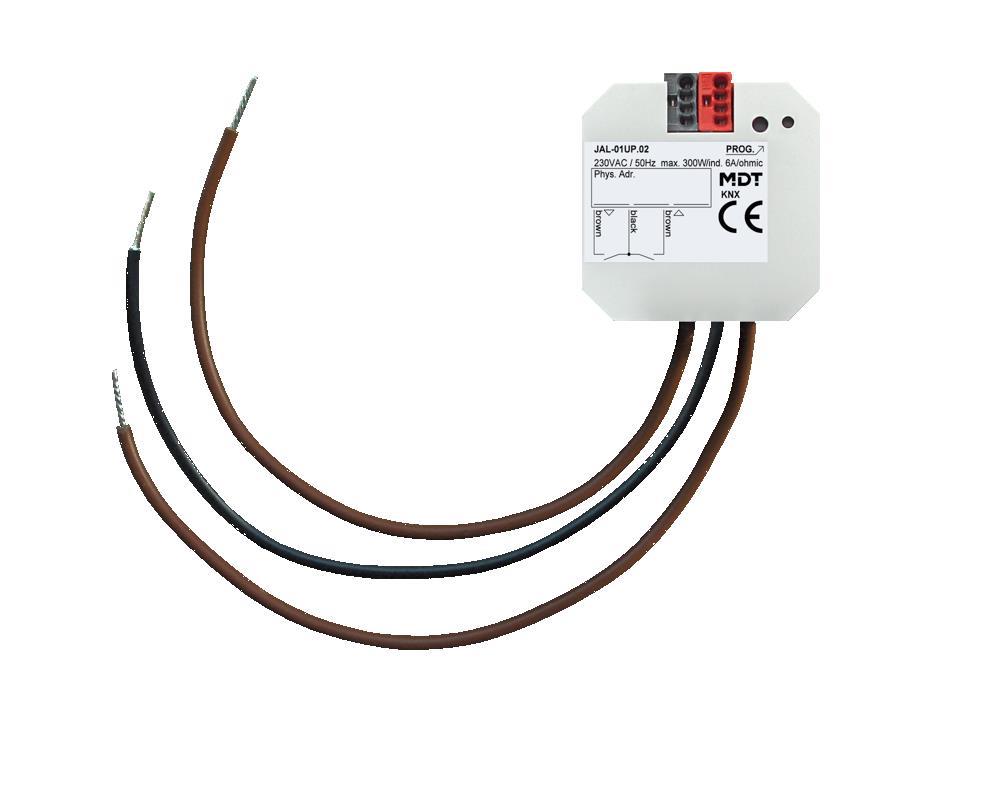

JAL-01UP.02 - Shutter Actuator 1-fold, flush mounted, 6 A, 230 V AC

Shutter Actuator 1-fold, flush mounted, 6 A, 230 V AC. Shutter Actuator to feed 230 V AC shutter motors up to 300 W. Comprehensive application. Operation mode blind/shutter. Practical ventilation function (window open/tilt). Travel-, pause-at-change-of-direction and step time adjustable. Separate travel time for up and down adjustable. Tip operation for accurate positioning. Extended 1 Bit automatic positions and logical functions. 1 Byte absolute positioning for shutter and blinds. Alarm, central- and block functions. Behavior after alarms and block separately adjustable. Priority/forced operation with automatic release time. Adjustable behavior in case of bus voltage return. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. Quick application download (long frame support for ETS5). 3 year warranty.
