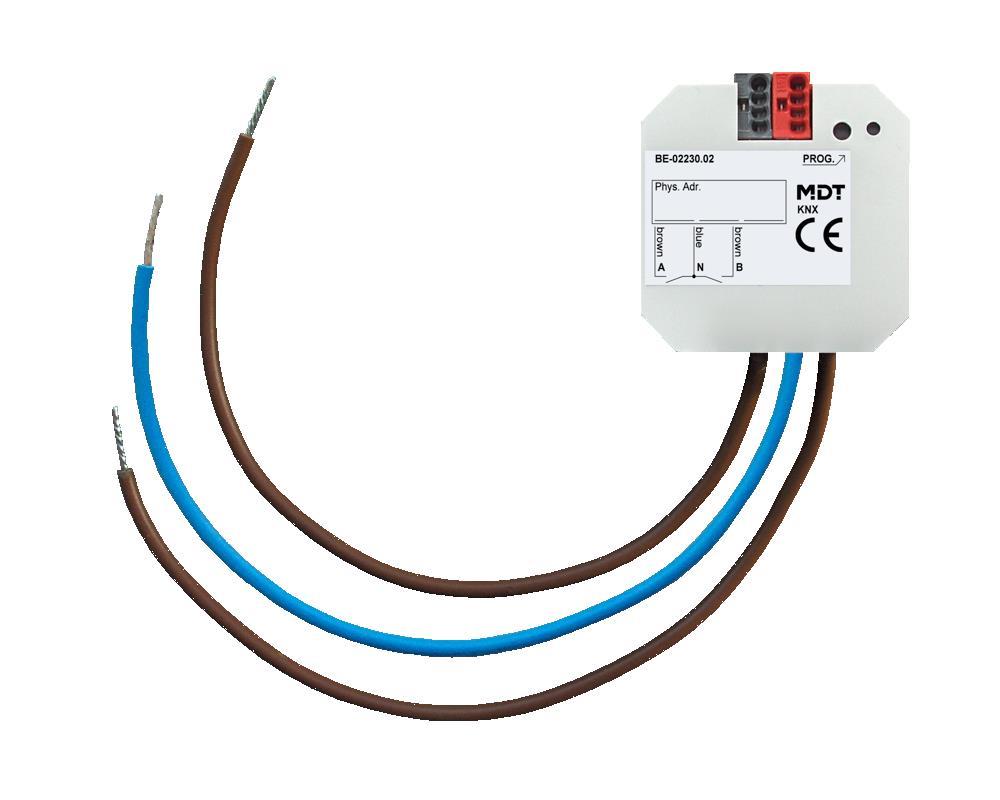

MDT BE-02230.02 - Universal Interface 2-fold, flush mounted, Inputs 230 V AC

Universal Interface 2-fold, flush mounted, Inputs 230 V AC. Input detection of 230 V AC signals. Flush mounted, max cable length 100 m. To connect 230 V push-buttons, switches, presence detectors. New multi touch function, sends up to 4 values/DPTs on the same or different objects. Innovative group control with long/extra long button press. 4 integrated logical modules, e.g. interpretation of the inputs (e.g. window closed or sending second object). NO or NC contact operation, adjustable length of button push. Dimming and shutter function for 1 and 2 button operation. Forced setting function for each output. Short/long button push with 2 objects. Counting of pulses, cyclical sending of contact state adjustable. Flush mounted installation (length of connection cables: 22 cm). Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. Integrated bus coupling unit. 3 year warranty.
