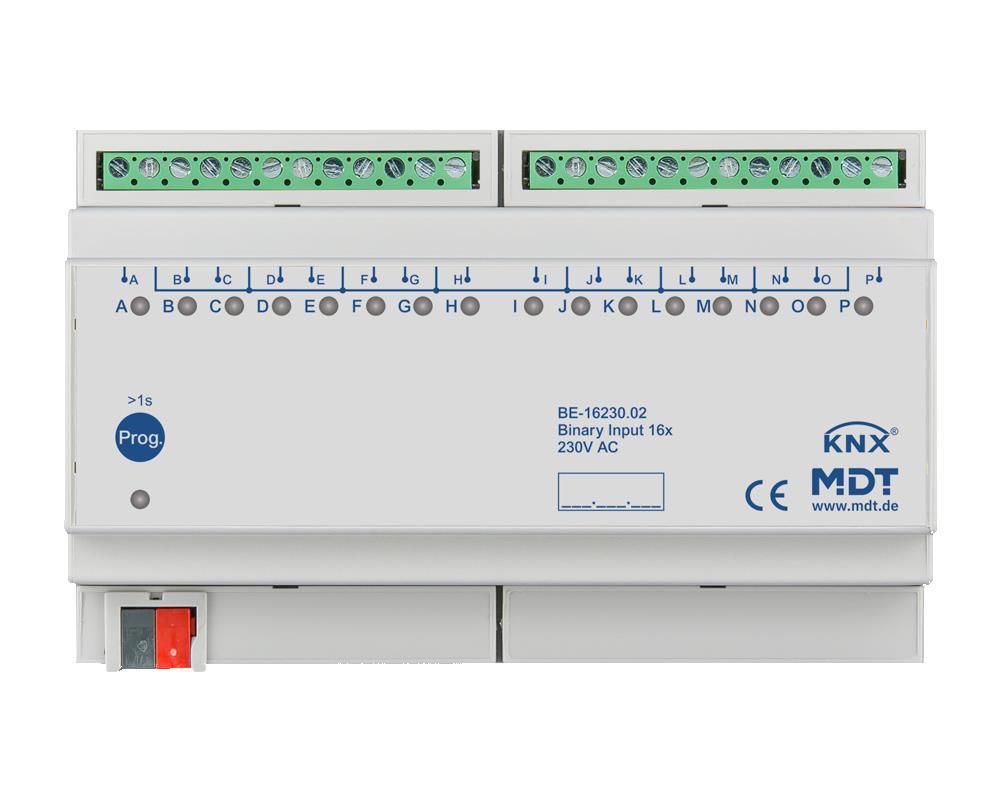

MDT BE-16230.02 - Binary Input 16-fold, 8SU MDRC, Inputs 230 V AC

Binary Input 16-fold, 8SU MDRC, Inputs 230 V AC. Binary Input detection of 230 V AC signals. LED indicator for each channel, max. input cable length 100 m. To connect push buttons or window/auxiliary contacts. New multi touch function, sends up to 4 values/DPTs on the same or different objects. Innovative group control with long/extra long button press. 4 integrated logical modules, e.g. interpretation of the inputs. (e.g. window closed or sending second object). NO or NC contact operation, sending contact status. Operation of blinds and shutters, 1 and 2 button operation. Forced setting function for each output. Scenes, block communication object for each channel. Operation with short/long button push and 2 objects. Counting of pulses, suitable for 30 ms S0 pulses. Cyclical sending, sending after reset. 3 year warranty.
